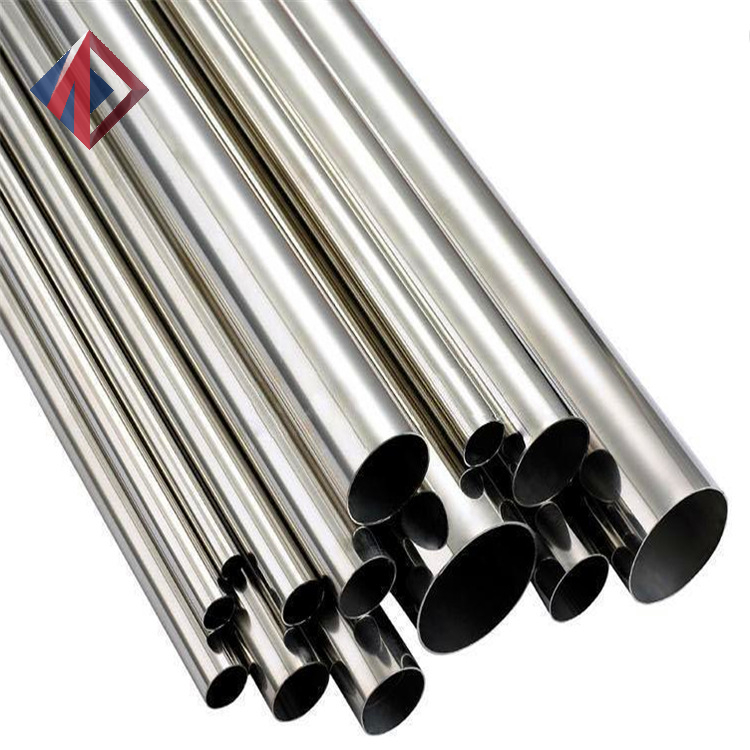

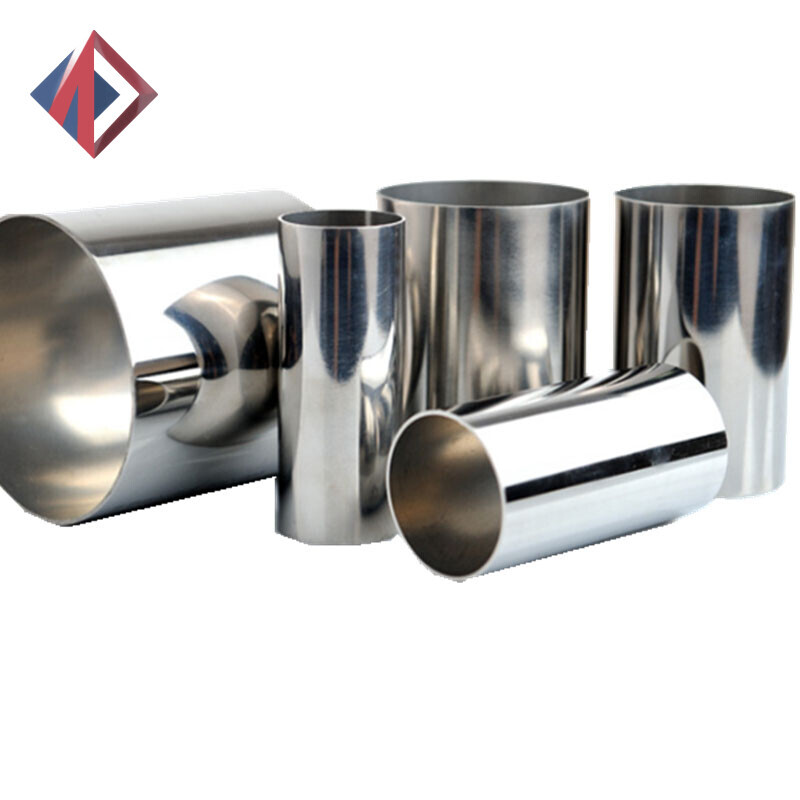

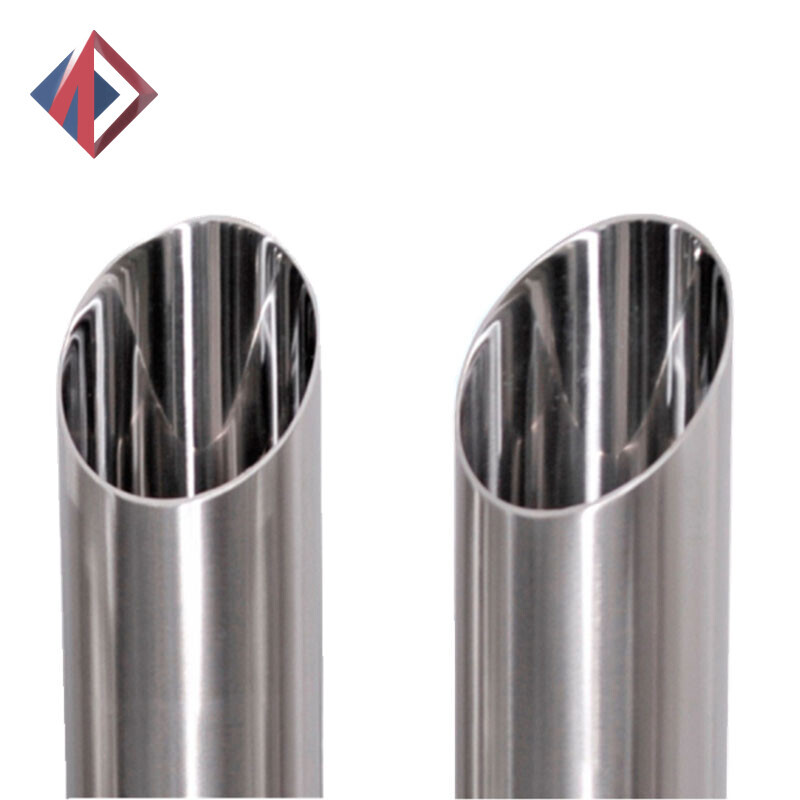

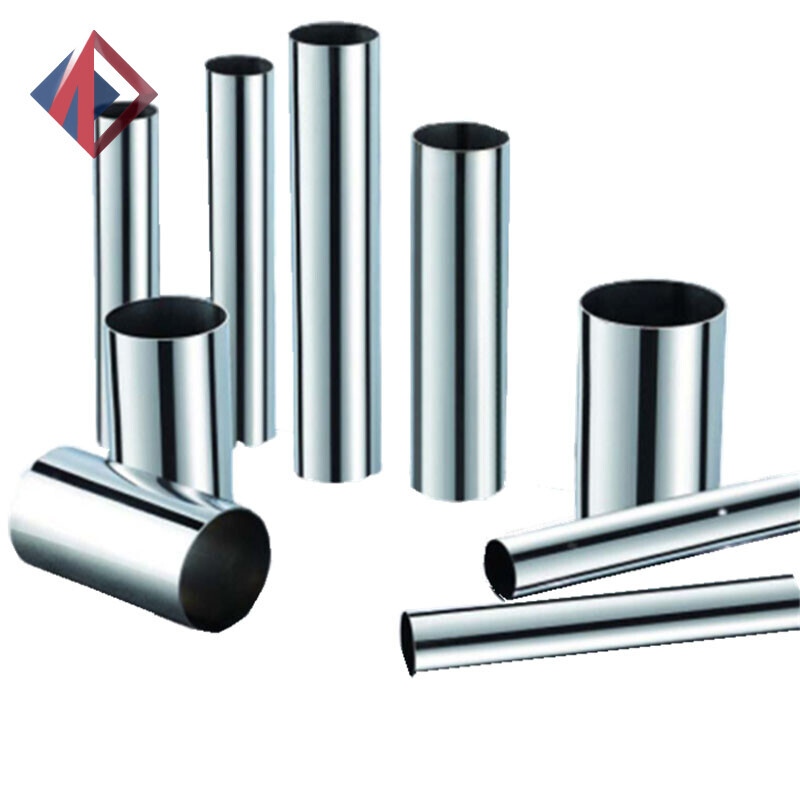

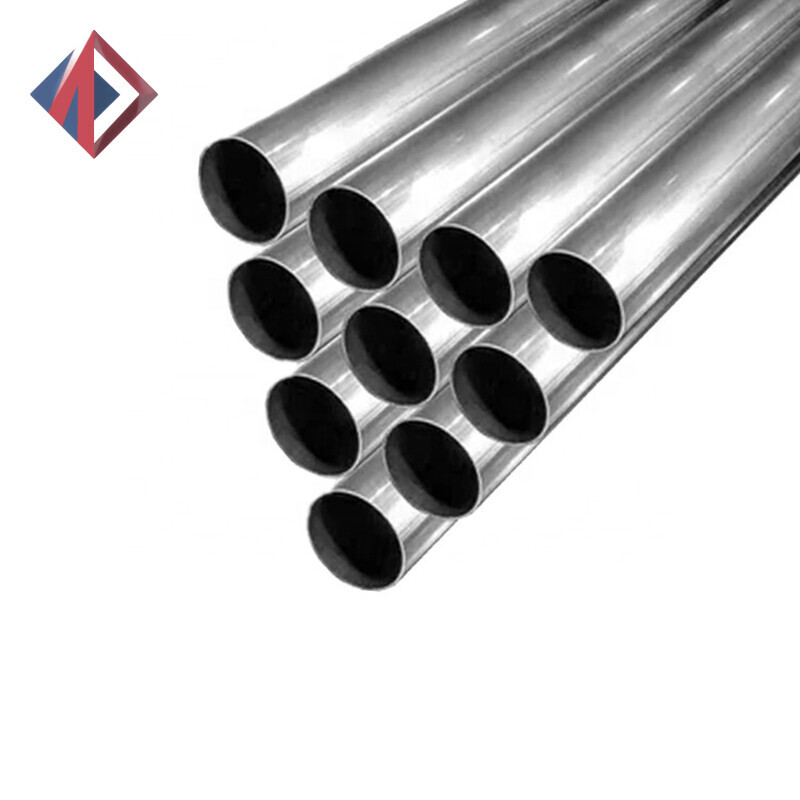

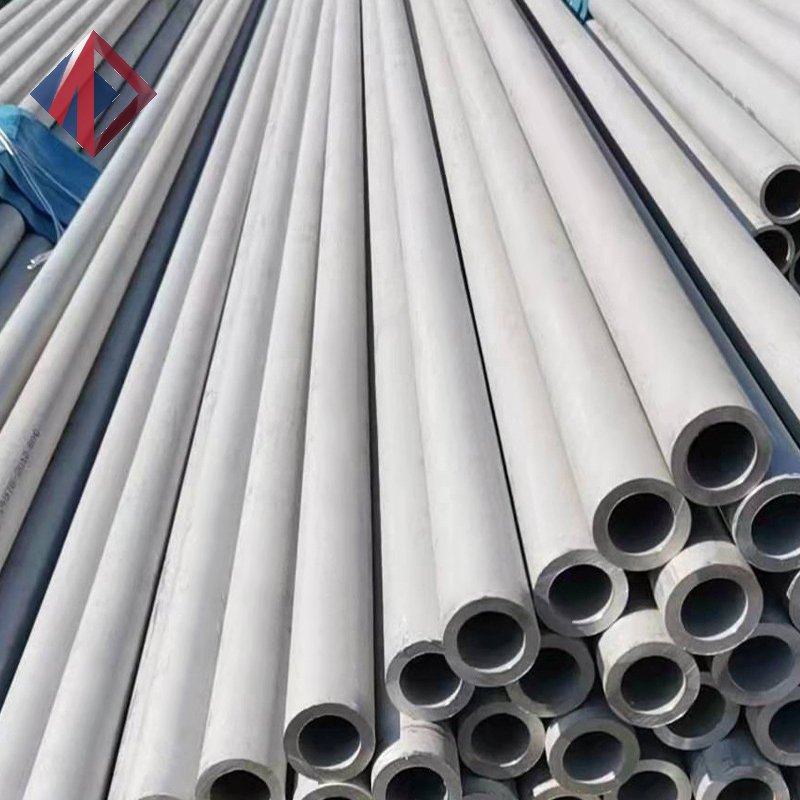

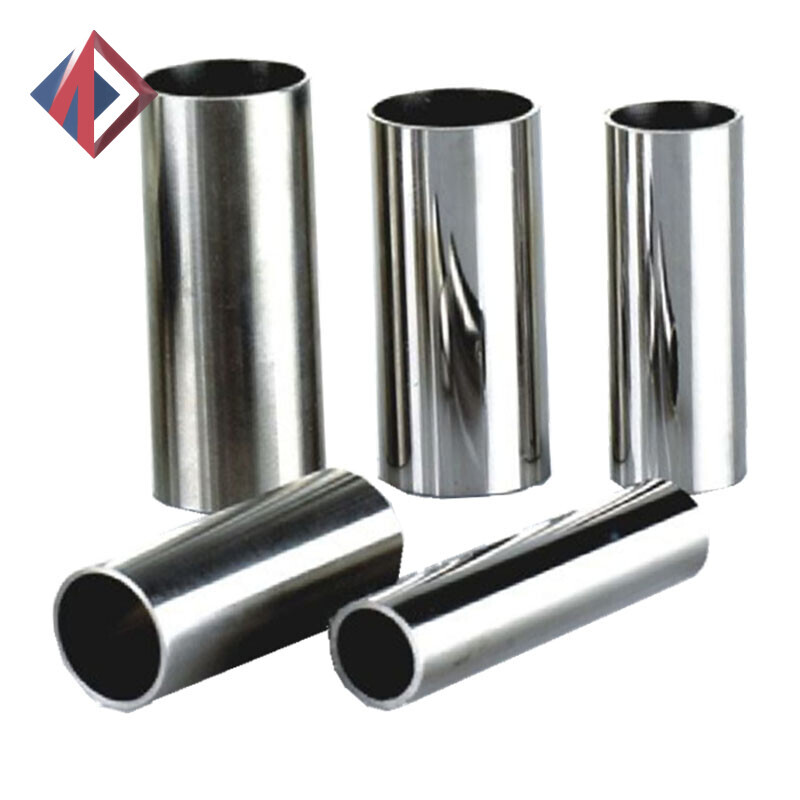

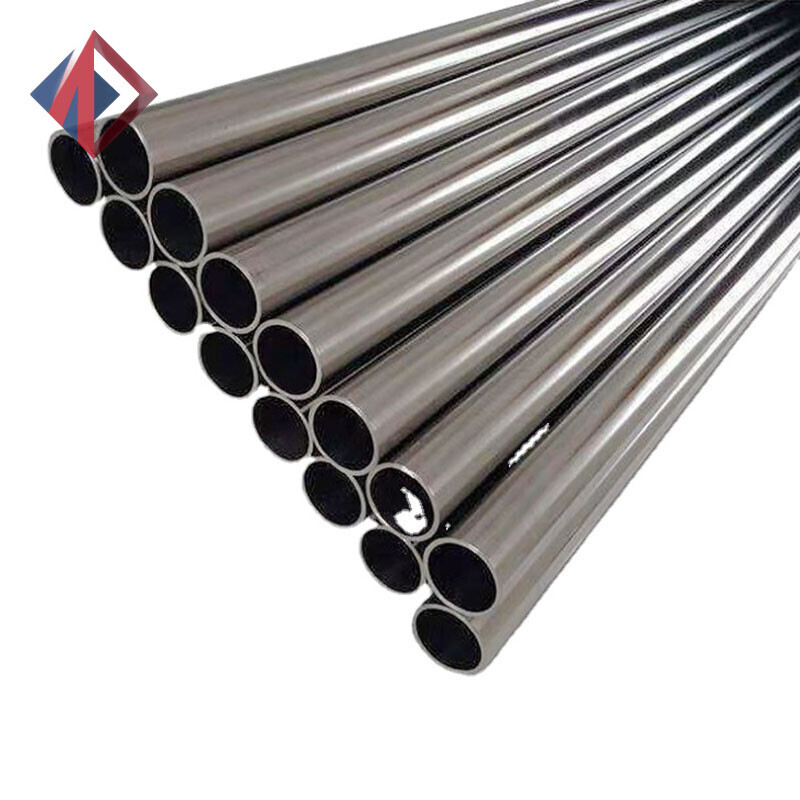

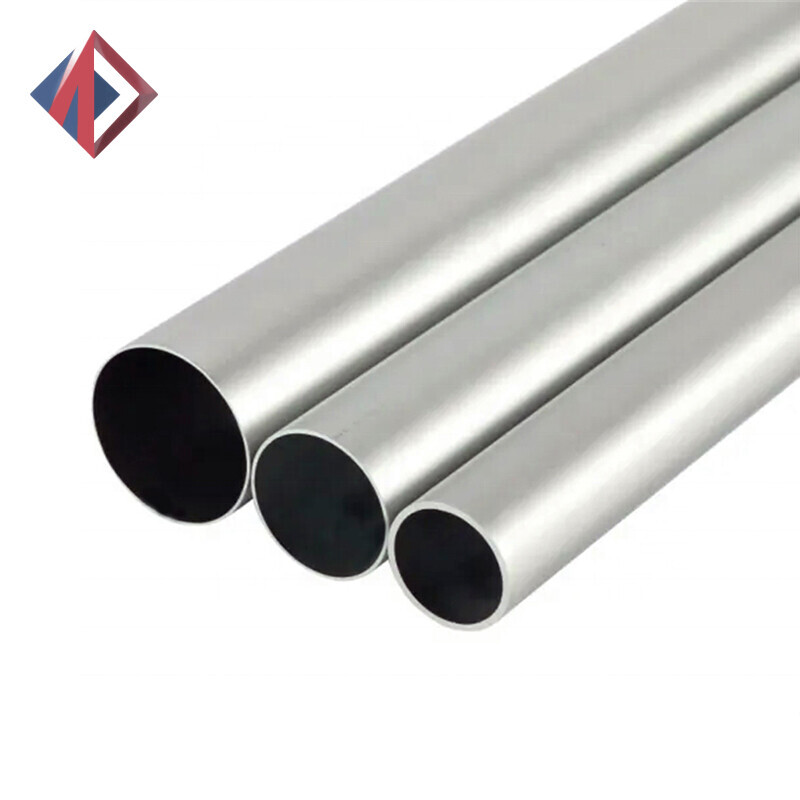

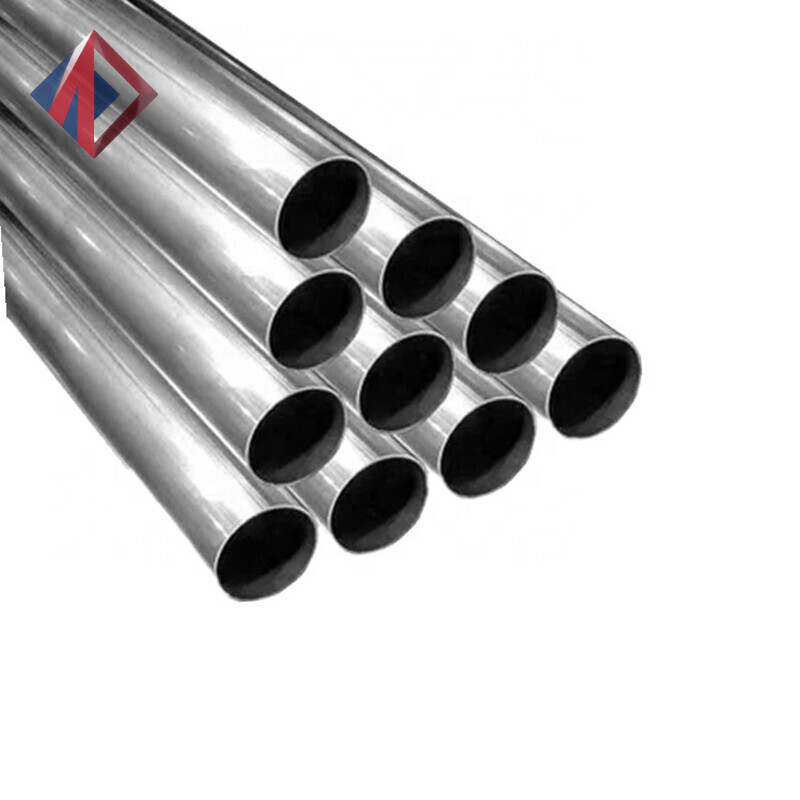

Durable Stainless Steel Pipe

MOQ: 10Ton/USD 900-2000

Round Stainless steel pipe SS304 316L 316 310S 440 1.4301 321 904L 201 welded square pipe inox SS seamless tube

Different minimum order quantities lead to different product prices
If you need it, please click below to get a free quote

+86 17712461562

zhengkuansale2@zksspipe.com

Product Description

Round Stainless steel pipe SS304 316L 316 310S 440 1.4301 321 904L 201 welded square pipe inox SS seamless tube

Standard	GB,AISI,ASTM,DIN,EN,JIS
Grade	Stainless steel 304 / 304L / 310S / 316L / 316Ti / 316LN / 317L / 904L / 2205 / 2507 / 32760 / XM-19 / S31803 / S32750 / S32205 / F50 / F60 / F55 / F60 / F61 / F65 etc
	Monel 400 / K-500
	Inconel 600 /601 / 625 / 617 / 690 / 718 /X-750
	Incoloy A-286 / 800 / 800H / 800HT
	Incoloy 825 / 901 / 925 / 926
	Nimonic 75 / 80A / 90 / 105 / C263 / L-605
	Hastelloy B / B-2 / B-3 / C /C-276 / C-22
	Hastelloy C-4 /C-2000 / G-35 /X / N
	15-5PH / 17-4PH / 17-7PH
Inspection	TUV,SGS,BV,ABS,LR and so on
Application	It is widely used in the fields of petroleum, food, chemical industry, construction, electric power, nuclear energy,machinery, biology, papermaking, shipbuilding and boilers.Pipes can also be made according to customer requirements.
Processing Service	Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining
	Deformation processing : Bending / Cutting / Rolling / Stamping
	Welded
	Forged
Surface	2B, BA, No.4,6K, 8K, hairline, embossed,etched, vibration, pvd color coated, titanium, sand blasted, Anti-fingerprint
Length	2000mm, 2500mm, 3000mm, 5800mm, 6000mm,12000mm， etc
chemical component ( %)
Grade ASTM	C	Si	Mn	S	P	Cr	Ni
201	≤0.15	≤0.75	5.50-7.50	≤0.030	≤0.060	16.00-18.00	3.50-5.50
304	≤0.07	≤1.00	≤2.00	≤0.030	≤0.035	17.00-19.00	8.00-11.00
304L	≤0.03	≤1.00	≤2.00	≤0.030	≤0.035	18.00-20.00	8.00-12.00
309S	≤0.08	≤1.00	≤2.00	≤0.030	≤0.035	22.00-24.00	12.00-15.00
310S	≤0.08	≤1.00	≤2.00	≤0.030	≤0.035	24.00-26.00	19.00-22.00
316	≤0.08	≤1.00	≤2.00	≤0.030	≤0.045	16.00-18.00	10.00-14.00
316L	≤0.03	≤1.00	≤2.00	≤0.030	≤0.035	16.00-18.00	12.00-15.00

Product processing

Surface Finish

N0.1	Original	Pickled after hot rolling
2D	Blunt	Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling
2B	Blurred	Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling + tempering rolling
N0.3	Matte	Polishing and tempering rolling with 100-120 mesh abrasive materials
N0.4	Matte	Polishing and tempering rolling with 150-180 mesh abrasive material
NO.240	Matte	Polishing and tempering rolling with 240 mesh abrasive materials
NO.320	Matte	Polishing and tempering rolling with 320 mesh abrasive materials
NO.400	Matte	Polishing and tempering rolling with 400 mesh abrasive materials
HL	Brushed	Grind the surface of the steel belt with an appropriate grinding grain size to make it show a certain longitudinal texture
BA	Bright	The surface is annealed and shows high reflectivity
6K	Mirror	Rough grinding and polishing
8K	Mirror	Fine grinding and polishing

Stainless steel pipe is a hollow strip of round steel, which is widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is light, so it is also widely used in the manufacture of mechanical parts and engineering structures. Also used as furniture and kitchenware.

Direction for use

Stainless steel pipes are divided into ordinary carbon steel pipes, high-quality carbon structural steel pipes, alloy structural pipes, alloy steel pipes, bearing steel pipes, stainless steel pipes, and bimetallic composite pipes, coatings and coating pipes for saving precious metals and meeting special requirements. . Stainless steel tubes are available in a wide variety of applications, with different technical requirements and different production methods. The outer diameter of the currently produced steel pipe ranges from 0.1 to 4500 mm and the wall thickness ranges from 0.01 to 250 mm. In order to distinguish the characteristics, the steel pipes are usually classified as follows.

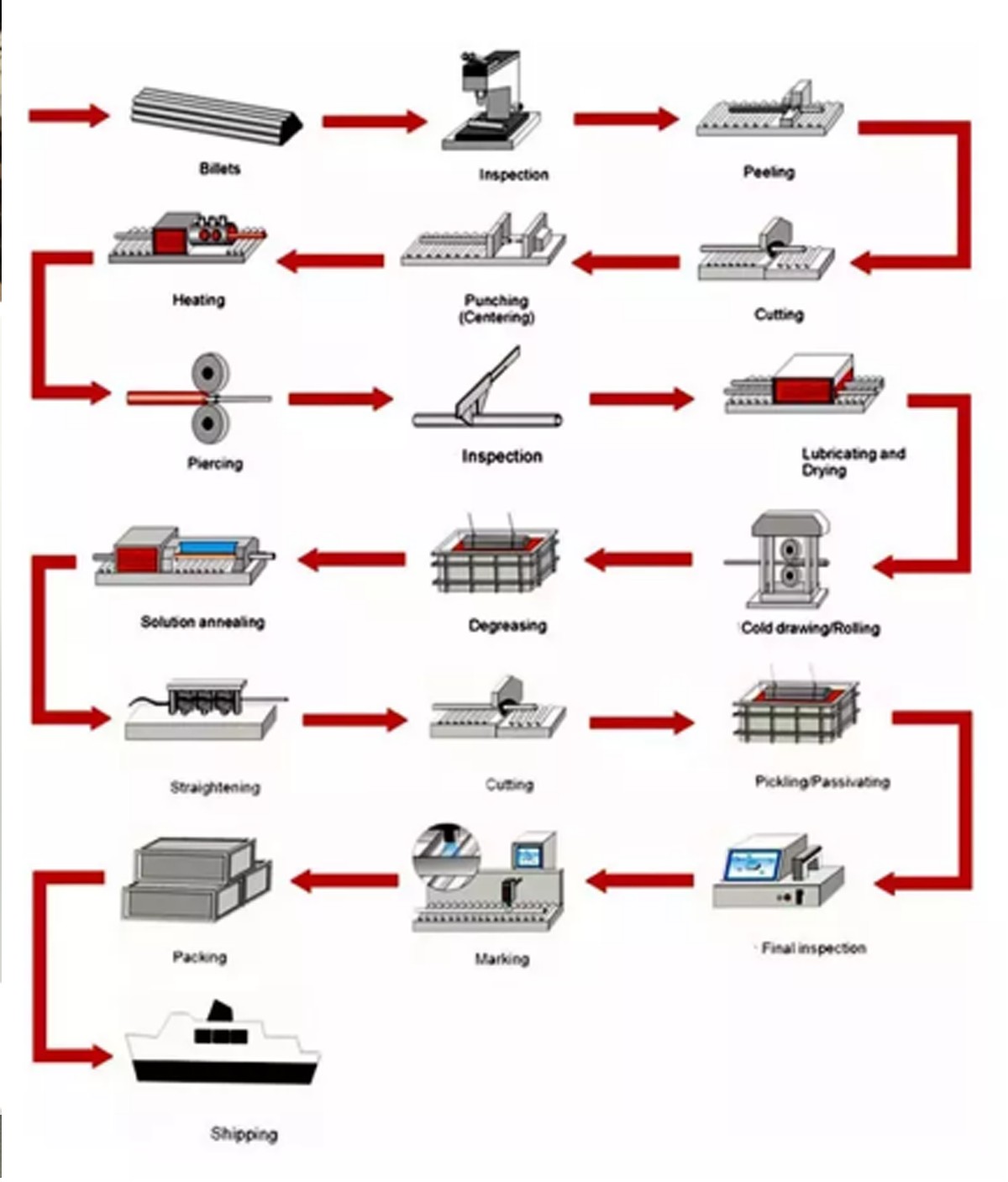

Process:

Raw materials - slitting - welding pipe - trimming - polishing - inspection (printing) - packaging - shipping (into the warehouse) (decorative welded pipe). Raw materials--striping--welding pipe--heat treatment--correction--straightening--trimming--pickling--hydraulic pressure test--inspection (printing)-packaging--shipping (warehouse)

Usage of Stainless Steel Tubes

· Stainless Steel Seamless Pipes are used in various fields, especially food processing, as they are not prone to acid corrosion found in common foods. Therefore, this steel is suitable for products such as sinks, dishwashers, food shop equipment, and refrigerators.

· Stainless steel tubing can also be used in heat exchangers, chemical tanks, and piping in the brewing industry. It can be used as a production material in places where high-temperature petroleum gases or vapors are stored, such as pressure vessels.

· Stainless steel tubing can also be used on standard corrosive carbon steel structures.
